Dense Phase Pneumatic Conveying System
Dense Phase Pneumatic Conveying System

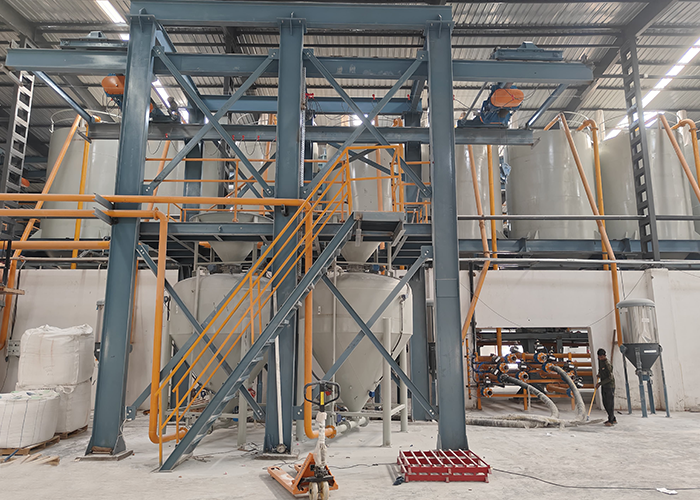

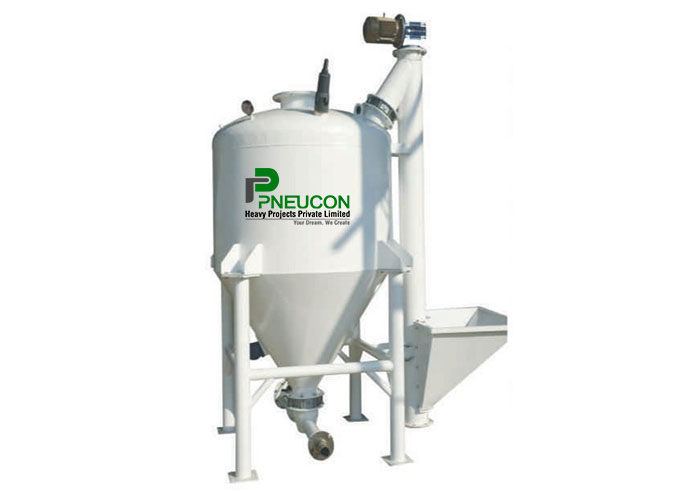

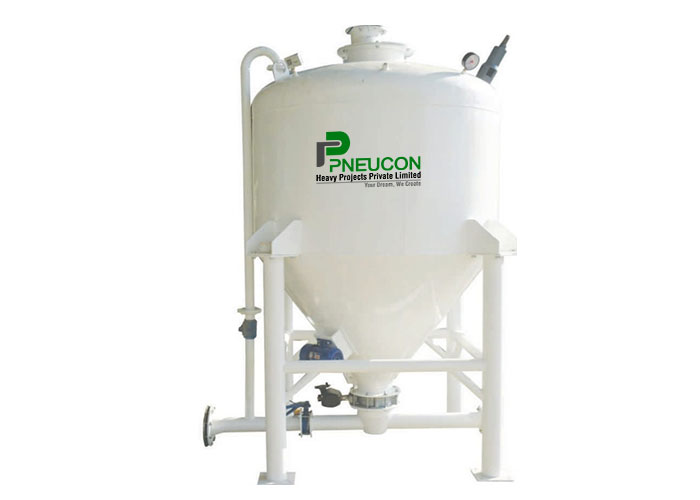

A Dense Phase Pneumatic Conveying System transports bulk materials at low velocity (1–12 m/s) and high pressure (1–6 bar(g)) using compressed air. The material moves in the form of plugs or dunes, ensuring controlled and gentle conveying. This method significantly reduces product degradation and minimizes pipeline wear, making it ideal for long-distance transport of powders, granules, and flakes—especially for fragile or abrasive materials.
Technical Details
| Parameter | Specification |
|---|---|
| Design Pressure | 7 bar(g) |
| Pressure Vessel Codes | CE (EN 13445), ASME Section VIII Div. 1 |
| Pressure Vessel Materials | Carbon Steel, Stainless Steel |
| Solids Handling Valve Materials | SG Iron, Stainless Steel |
| Air Distribution Manifold | SS 304 Pipes & Fittings |
| Pneumatic Control Piping | Nylon / PU Tubes with Push-Fit Connectors |
| Process Panel Enclosure | IP54 or higher |
| Level Switch Voltage | 240 V, 50 Hz |
| Control Panel Voltage | 240 V, 50 Hz |
| Pressure Transmitter Voltage | 240 V, 50 Hz |
Key Features
- Low Velocity / High Pressure Operates with high product-to-air ratios using pressure vessels (up to 6 bar(g)), ensuring gentle material handling
- Reduced Wear & Degradation Minimizes attrition and pipeline erosion, extending equipment lifespan.
- Efficient for Complex Routing Ideal for long-distance and high-capacity conveying from single or multiple sources to multiple destinations.
- Closed, Dust-Free System Ensures clean operation with minimal environmental contamination, often incorporating Total Line Cleaning Technology
Application:
Dense phase conveying systems are best suited for:
Best for:
Less suitable for:
Key Components
